rsr-545vpf
7” HIDDEN Louver
7″ deep storm-resistant louver with perforated sheet; extruded aluminum construction; frame with channel profile; corner joints mitered and mechanically fastened, with continuous recessed caulking channel each side; intermediate mullions matching frame; gutters to drain rain water to jamb and mullion downspouts; Maintains effectiveness rate of 0.99 when tested in accordance with AMCA 500L, without screen.
Storefront
Curtain Wall
Metal Panels
AIRFLOW PERFORMANCE
Free Area – 54.6% (8.72 ft2)
Free Area Velocity @ Beginning point of water penetration – 1250 FPM
Discharge loss coefficient Classification – Class 2
Louver tested with 1m2 core area without screens
WIND DrIVEN PERFORMANCE
Maintains Class A (100%) rating at 29mph wind velocity with 3in/hr rainfall rate
Max. intake core velocity – 984 FPM (5.0 m/s)
Maintains Class A (99.6%) rating at 50mph wind velocity with 8in/hr rainfall rate
Max. intake core velocity – 984 FPM (5.0 m/s)
ADDITIONAL FACES AVAILABLE UPON REQUEST
PROFILE
SQ002
PROFILE
SL006
Dimensions:
Open Area:
Hole Diameter:
Centers:
PROFILE
O024
PROFILE

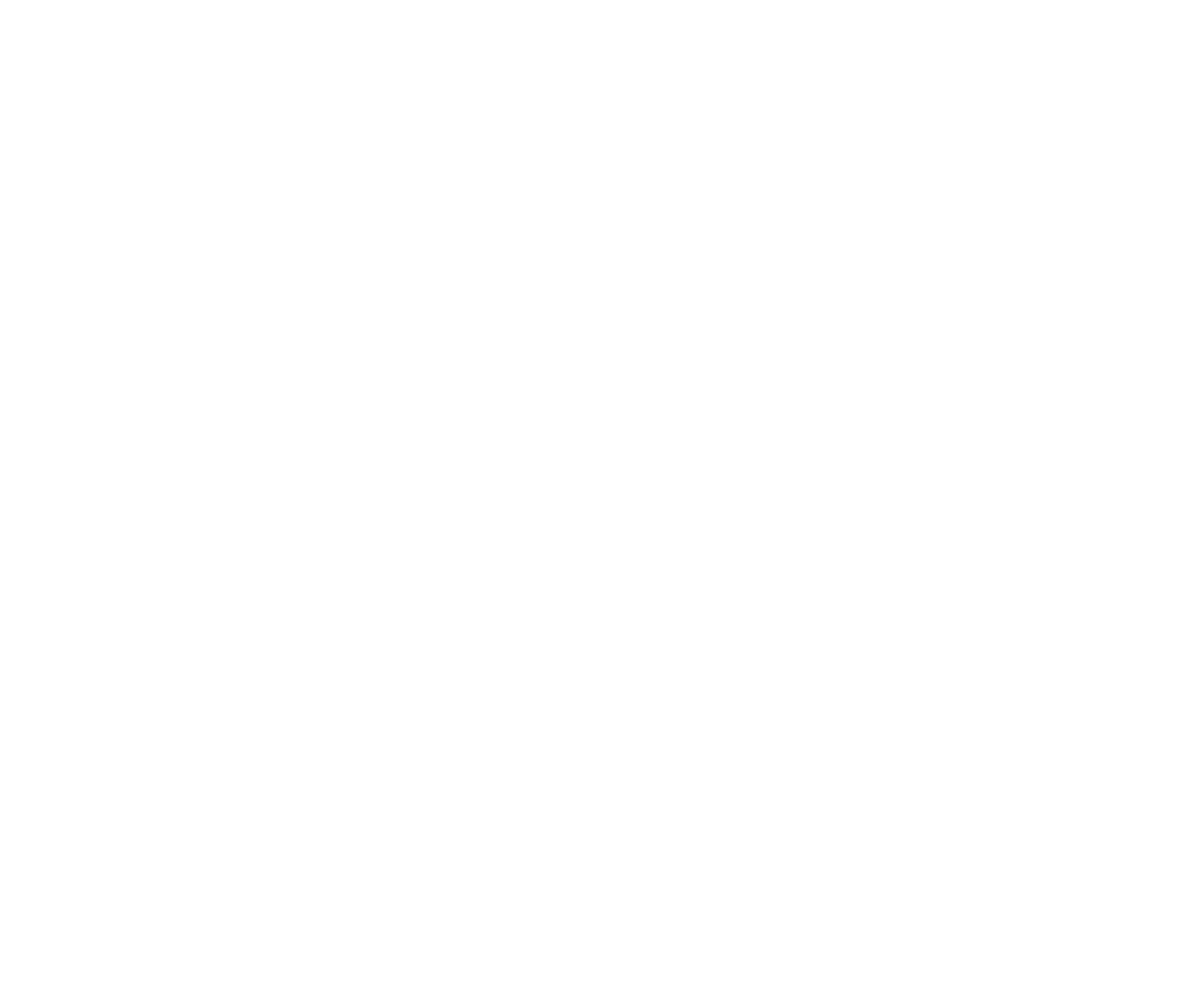

RS059
PROFILE
O004
0.2” x 0.25”
64.0%
0.200
0.250
Dimensions:
Open Area:
Hole Diameter:
Centers:
0.281 x 1.843 SQ. END
62.0%
0.281
1.843
Dimensions:
Open Area:
Hole Diameter:
Centers:
.169” Hex x .209” CTRS
65.0%
0.169
0.209
Dimensions:
Open Area:
Hole Diameter:
Centers:
0.156” x 0.187”
63.0%
0.156
0.187
Dimensions:
Open Area:
Hole Diameter:
Centers:
Cloverleaf
51.0%
0.500
0.750
